GeoSolutions a Highly Technologically Advanced Biaxial High Strength Grid for Soil Improvement and Reinforcement

It’s hard to imagine anything more important to infrastructure development than the basic requirement of material availability, soil reinforcement and ground stabilization. Recent advances in technology together with innovative engineering and construction methods has allowed Soil Solutions^®  to meet the ever growing demands for development in even the most challenging areas.

GeoSolutions is one of the technologies provided under our Intelligent Road Solutions™ offerings

Our Geogrid Solutions involve the amalgamation of high strength junctions and stiff ribs in a bi-axial configuration, which provide the ideal automatic retention of loose soil and aggregate into a rigid layer. This property makes the technology perfect for a multitude of commercial, residential, and industrial projects. Geogrid technology and application have become an inseparable part of working platforms, parking areas, railway track beds, roads, airports and airfields, housing developments, warehouses, tunnel lining, steep slopes and asphalt reinforcements, among scores of other infrastructure projects, especially those located in swampy or sandy areas.

Our Geogrid Solutions and applications in road stabilization are yet another way in which Soil Solutions^® is leading the way in the implementation of Intelligent Road Solutions™   through the integration of road and soil improvement technologies that solve the developmental challenges we face today.

GeoSolutions are ideal for temporary roads, or Roads in swamp conditions, as well as for sand stabilization.   GeoSolution technology provides a solution for the most challenging of conditions.

GeoSolutions …Less Aggregate…

Increased Loading Bearing Capacity …Less Cost

Having won the plaudits of the construction industry primarily due to their numerous benefits, Geogrids are known to reduce the amount of aggregate required for layer works that in turn improve the load bearing capacity in addition to reinforcing the base layer. The use of Geogrids reduces the requirement for backfilling, import aggregate, sub grade layer thickness, construction costs and carbon emissions. Utilization of Geosolutions technology maximizes control of differential and vertical subgrade settlement while increasing construction efficiency and reducing the construction footprint.

The ability of the Geogrid to form an additional protection layer and when required the creation of initial vegetation growth makes this an easy, quick, economical, and environmentally safe technology, perfect for slope and embankment stability and erosion control. What makes GeoSolutions technology perfect for steep slopes are their capacity to reduce land use and the quantity of fill required. This apart, restricts encroachment into environmentally sensitive areas, paves the way for simple and fast construction, promotes the use of soils available locally and serves as a cost effective addition or alternative to retaining walls.

In addition for undertaking asphalt reinforcement, the need arises for a unique technology that is not only quick and easy to install, but also significantly reduces reflective and fatigue cracking while extending the structural life of the pavement and reducing maintenance costs. Geogrid is a durable and efficient solution that combines these benefits with long-term cost savings.

GeoSolutions for Intelligent Roads

Geogrid can be combined with EBS™ – Soil Stabilizer to create a strong and multi layer surface while allowing for significant savings in terms of reduced aggregate.

Another Engineered Solution provided by Soil Solutions^®   Consider it Solved.

Soil Solutions preferred Supplier is Tensar International.

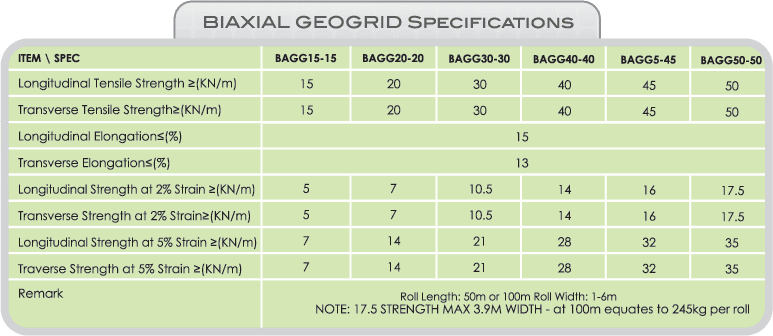

BIAXIAL GEOGRID – Less Aggregate More Strength

BIAXIAL GEOGRID is made of advanced High-density Polyethylene TPL composition which allows for maximum strength

• Reduces the volume of aggregate required
• Provides increased transverse tensile strength and longitudinal strength
• Reduces construction costs
• Reduces environmental impact
• Reduces overall initial cost as well as the maintenance expense over the life of the project
• Provides stability for slopes

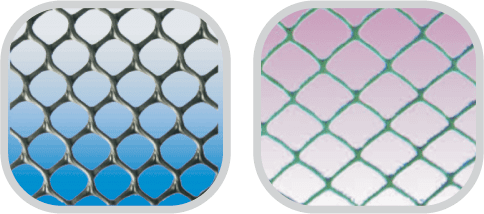

• GEONET is made of high-density polyethylene (HDPE).
• GEONET is UV Resistant , long lasting and Protects against Erosion.
• Using GEONET on the roadbed of the roadway and railway will distribute the load effectively, improve the load bearing capacity and the stability of the roadway, and prolong its service life.
• Spreading GEONET in the dyke protection in the reservoir or river will stabilize and prevent landslides.
• GEONET provides flexibility and increased erosion resistance.
•  GEONET can be used in coastal engineering to decrease erosion.

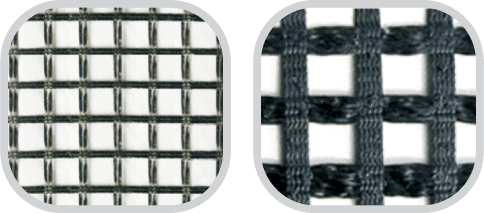

GEOPOLYGRID is an advanced and new applied technology that provides an earthwork base material to significantly strengthen road surfaces and layerworks. GEOPOLYGRID is composed of high strength polyester yarns coated with an inorganic sizing agent.

High Tensile Strength  • Low Elongation  • Tear-Resistant

Non-Corrosive  •  Long Lasting  • Alkali-Resistance

Increased Stability and Load Bearing Capacity

GEOPOLYGRID can be sprayed with EBS Soil Stabilizer for increased strength

APPLICATIONS INCLUDE:

1.  Reinforce roadbeds in soft soil for roads, railways, airstrips, irrigation channels
2.  Reinforce riverside, embankments and side slopes
3.  Strengthen the surface of roads and bridges

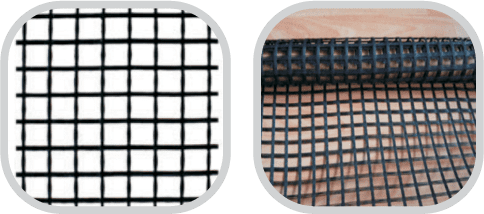

• GEOFIBREGLASS is a Geogrid that has been woven with a fiberglass filament. This material has a high vertical and horizontal tensile strength, low unit extension, high flexibility, and favorable high and low temperature resistance.
• GEOFIBREGLASS is used widely to increase the strength of asphalt road surfaces, concrete roads and roadbeds (both soft and hard road surfaces). Compared with the traditional road surface, GEOFIBREGLASS will reduce cost, prevent road decay, and extend road life.
• GEOFIBREGLASS is an excellent material to strengthen poor and low bearing soils and can be used for railway, airport, irrigation work, dyke, etc, and the roadbed.

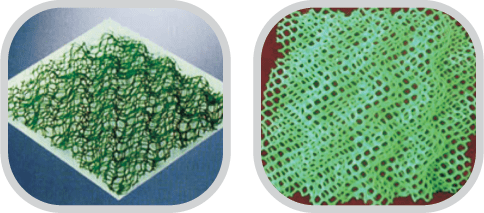

3D EROSION CONTROL MAT

3D – EROSION CONTROL MAT is a 3D matrix geosynthetic, that is used to retain water, increase seeding and allows for improved greening efficiency

Highly Effective Erosion Control   •  Allows For Effective use of Seeding

• Protects seeds from erosion, wind, and water until effective germination takes place.
• Forms a compound protection layer for the vegetation, preventing washout of the high water level and large speed current.
• Replaces expensive concrete, asphalt, and blocks, in the slope surface protection of roadway, railway, riverslopes, dyke, and the hillsides.

PP SHORT FIBER GEOTEXTILE – Semi-Permeable

Taking short-fiber as raw material, PP short-fiber pinprick Geo-cloth is manufactured with carding cross-laying equipment and prickling equipment.

This PP Short Fiber Geotextile was specifically designed for application in water conservancy, road and railway for strengthening, separation, reversed filter and drainage of projects.

• Can be used for Agronomic applications
• Can be used for Agricultural applications as a base for growing medium



Contact your nearest Authorised Agent for more details.

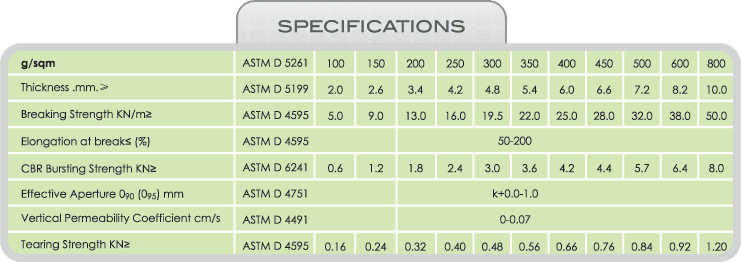

EBS Treated PP SHORT FIBER GEOTEXTILE
- Impermeable – waterproof -

When treated with EBS this PP Short Fibre Geotextile more than doubles in strength and has the added benefit of waterproofing ability.

• Can be sprayed with EBS Soil Stabilizer for increased strength and used under Geogrid for sandy conditions
• Can be sprayed with EBS Soil Stabilizer for increased strength and used as a lining for the base of ponds.
• Can be used for Agronomic applications
• Can be used for Agricultural applications as a base for growing medium



Contact your nearest Authorised Agent for more details.
