Soil Solutions is constantly innovating and supplying new technologies that improve the process, cost-effectiveness and sustainability of road construction. Our Road Recycler Machines do just that!

We take pride in delivering the best possible solutions to our clients across many industries including Mining, Oil, Agricultural, and Construction.

With these Road Recycler Machines / Attachments you can now achieve the same efficiency and high level of performance without the high cost of a self-propelled Recycler or Reclaimer, and negate the need for a crushing and screening plant as these attachments crush stone in-situ.

   See Road Recycler Machines in Action

Recycler Attachments Brochure

   About Road Recycler Machines:

These multi-purpose road recycler machines are the latest example of innovative technical and construction solutions that Soil Solutions provides.

Road Recycling Process

Road Recycler Attachments Process

ADVANTAGES

These road recycler machines were designed to be reliable and efficient even under the most harsh site condition. In particular, rugged solutions have been designed and developed to facilitate and accelerate ground stabilization for roads, highways, airports, and other major infrastructure jobs.

The Multi-purpose heads in the Construction Rotor may be attached to a tractor quickly and easily.  The tractor’s PTO powers the grinding head and can be quickly equipped with a stone crusher/stabilizer.

Superior Results with the ground perfectly consolidated and levelled. The rear mount keeps the tractor from running over the prepared surface.  These road recycler machines meet the requirements for many applications: stone crushers, soil stabilizers, and asphalt grinders for road maintenance and construction.

High performance Road recycler machines

   The Rotator


recycler machine R rotor
recycler machine G3 rotor

APPLICATIONS

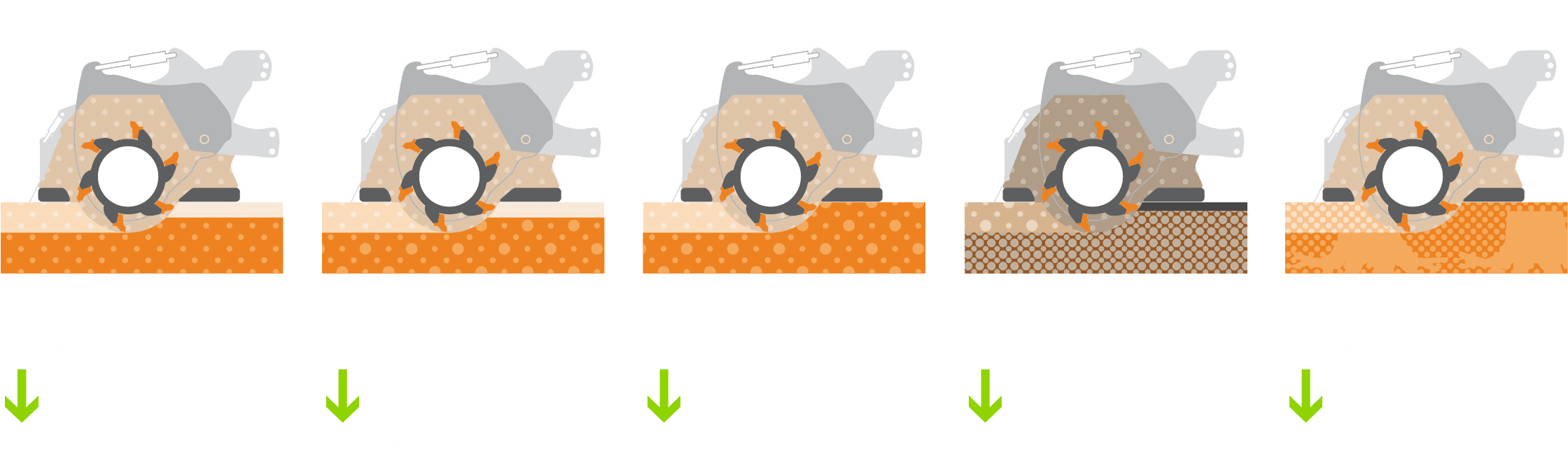

Road Recycler Attachement Applications

   Road Recycler Machine Models:

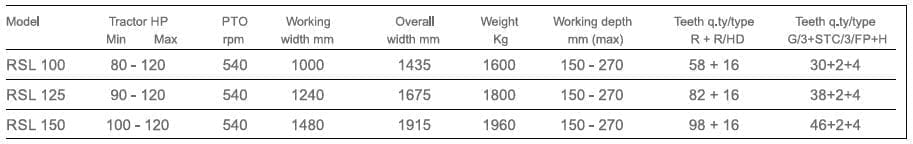

   RSL MODEL

RSL road recycler machine attachement

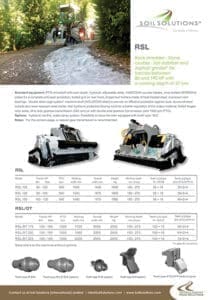

Road Recycler machines brochure

RSL Model  – Road recycler Machine Attachment

  • High-level function with reduced dimensions and low weight.
  •  Versatility and flexibility make it perfect even in very tight spaces.
  • Ideal for areas of asphalt during road maintenance.

VIEW RSL BROCHURE

   MTL MODEL

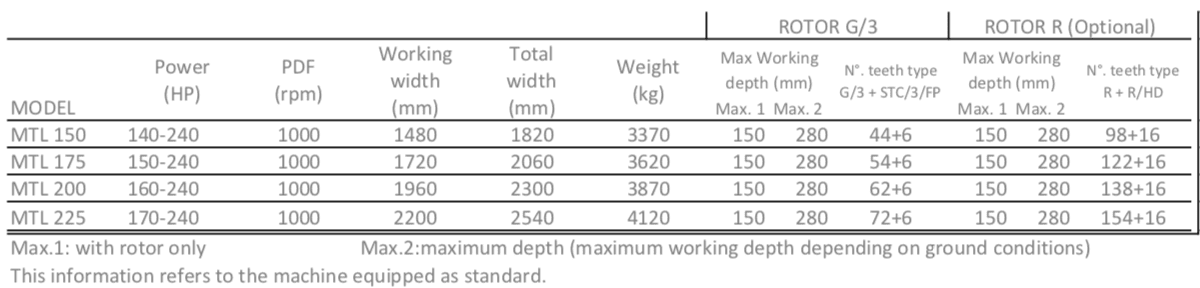

MTL Model  – Road recycler Machine Attachment

  • Developed for customers who own 140 to 240 HP tractors with a max working depth of 28cm.
  • WELDOX® steel frame and guards are made of HARDOX® steel to ensure the utmost resistance to wear and tear.
  • With its compact size, the machine can work in tighter spaces that are difficult for self-propelled units to reach.

VIEW MTL BROCHURE

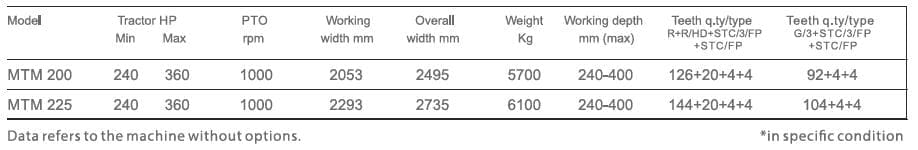

   MTM MODEL

MTM Road Recycler Machine model

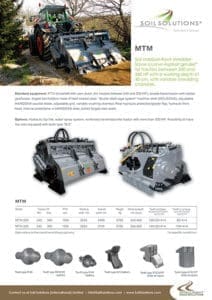

MTM Road Recycler Machines Brochure

MTM Model – Road Recycler Machine Attachment

Its compact size and maneuverability ensures:

  • Fast, easy transport from one jobsite to the next
  • Enables work in tight spaces that are hard to reach with self-powered machines

VIEW MTM BROCHURE

   MTH MODEL

MTH Road recycler attachments

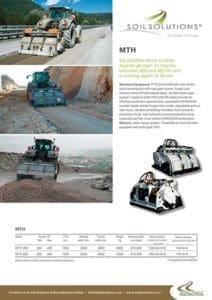

MTH Model Recycler Machine attachment

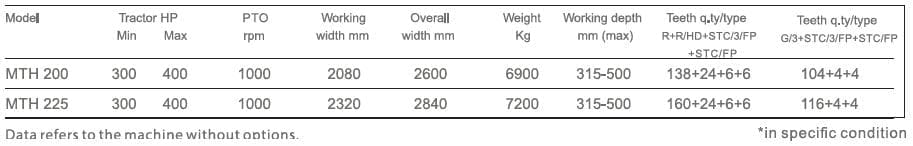

MTH Model – Road Recycler Machine Attachment

This is the top of the range in terms of technology and productivity.

  • Designed for use with very powerful tractors.
  • Extremely reliable as it offers high performance under the harshest conditions.

VIEW MTH BROCHURE

   Soil Stabilizer Attachments

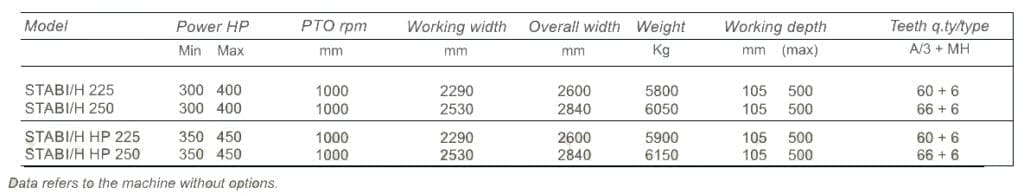

   STANBI/H MODEL

STANBI/H Heavy duty soil stabilizer attachement

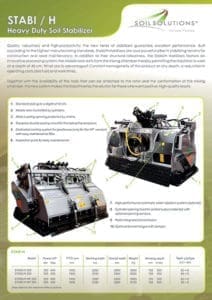

Road recycler machine Models

STABI/H Soil Stabilizers

  •  Built to the highest manufacturing standards providing quality, robustness and high productivity guaranteeing excellent performance.
  • The STABI/H feature an innovative processing system whereby the mobile rotor exits from the mixing chamber allowing the road recycler machine to work at depths up to 400mm.
  • Constant homogeneity of the product at any depth and reduction in operating costs and construction time are a few of the advantages of this heavy duty soil stabilizer.

VIEW STANBI/H BROCHURE

Advantages of the STABI/H road recycler machine over the Wirtgen WS Models:

  • Has a mobile rotor and mixing chamber with variable geometry providing the optimal mixing quality at all working depths. (Wirtgen has a fixed rotor)
  • Has interchangeable HARDOX steel protective plates on the sides of the rotor and chassis (Wirtgen has no interchangeable protection)
  • Has a Polychain driven transmission (Wirtgen has a belt-driven transmission)
  • Has a double spiral rotor with large fixed cutting tools (teeth) making it stone resistant (Wirtgen models have smaller teeth which are problematic with stones)
  • Has the ability to crush and mix stones or asphalt (Wirtgen models cannot crush stones)
  • Has an optional water spray system with built-in pump and an Automated Injection System (Wirtgen’s water system does not have a pump)

The STABI/H is a soil stabilizer and stone crusher, the Wirtgen models are only soil stabilizers.

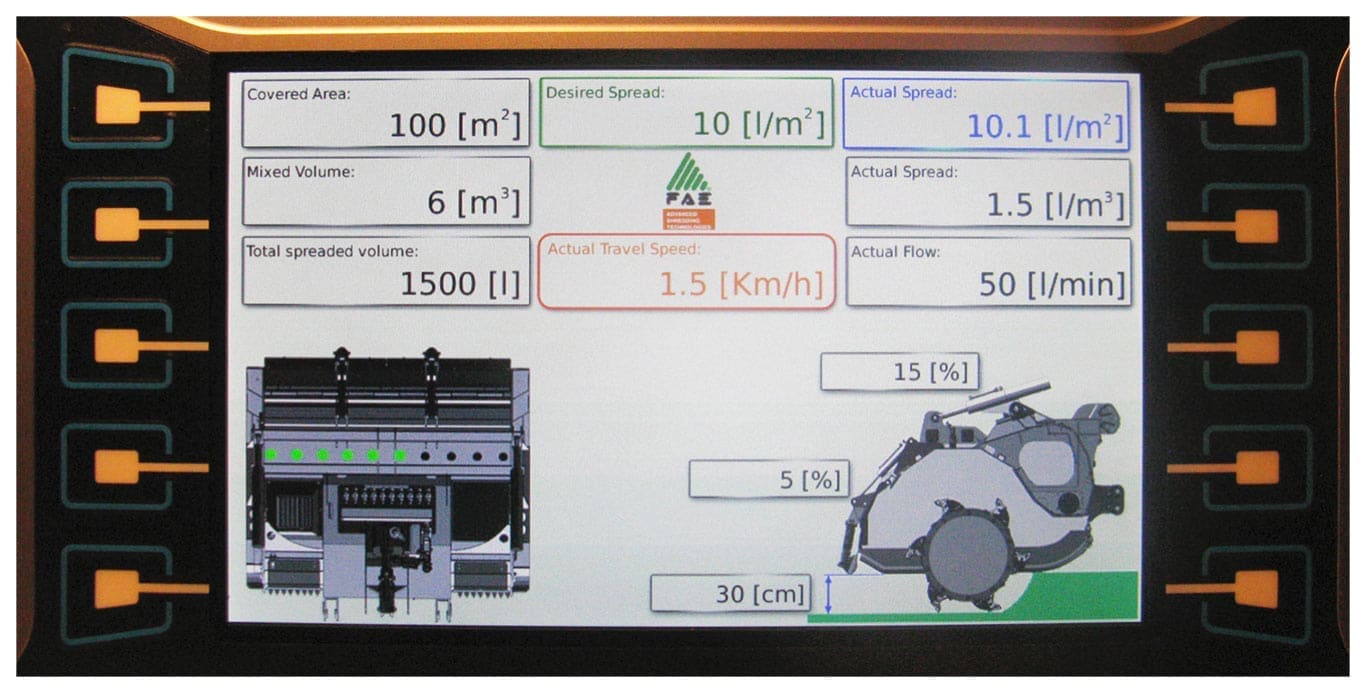

   AIS – AUTOMATIC INJECTION SYSTEM

AIS is the innovative automatic injection system for efficient and calculated supply distribution of water and EBS – Engineered Base Stabilizer

  • Using AIS the operator can directly set the exact quantity of liquid on the display according to the road surface (l/m² or gal/ft²) or volume (l/m³ or gal/ft³).
  • The AIS intelligent system adjusts itself, automatically defining the flow in the mixing chamber according to the advancement speed and required depth.
  • When compared to manual flow regulation, AIS leaves no margin for error, guaranteeing excellent and accurate results.
  • The material is mixed at the correct degree of humidity resulting in high-quality stabilization.

AIS Automatic Injection System

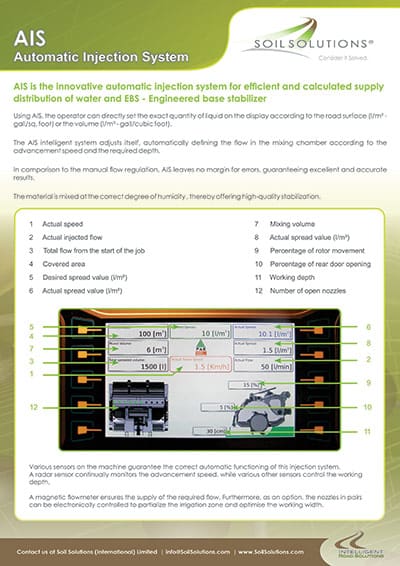

AIS Automatic Injection System brochure

VIEW AIS BROCHURE

Various sensors on the machine guarantee the correct automatic functioning of the injection system. A radar sensor continually monitors the advancement speed, while various other sensors control the working depth.  A magnetic flowmeter ensures that the required flow is supplied, in addition as an option, the pairs of nozzles can be electronically controlled to partialize the irrigation zone and optimize the working width.
